Flexo Printing Machine: Advanced Flexible Packaging Solutions

Introduction: Why the Flexo Printing Machine Is the Backbone of Flexible Packaging
In today’s highly competitive flexible-packaging market, the Flexo Printing Machine stands out as the most versatile, economical, and eco-efficient production tool. From snack pouches to pharmaceutical sachets, every eye-catching package you see on retail shelves was very likely born on a Flexo Printing Machine. At Huayang Precision Printing & Packaging Machinery, we have spent more than two decades refining this technology, pushing the Flexo Printing Machine beyond traditional limits and into Industry 4.0 territory.
Section 1: Core Components of a High-Performance Flexo Printing Machine
A modern Flexo Printing Machine is much more than a collection of ink pans and rubber rolls. It is an integrated system built around five key modules:
• Servo-driven anilox inking system for micron-level ink transfer accuracy
• Cantilevered sleeve cylinder design for 2-minute job changes on the Flexo Printing Machine
• Closed-loop tension control that guarantees ±0.5 % web stability across the entire Flexo Printing Machine
• High-efficiency IR/UV/EB drying units engineered to eliminate solvent residue on the Flexo Printing Machine
• Vision-based 100 % defect inspection integrated inline with the Flexo Printing Machine
These subsystems work in concert to deliver 200 m/min repeatable print quality on substrates ranging from 12 µm PET to 400 gsm board—proving that the Flexo Printing Machine is no longer a “just-good-enough” technology.
Section 2: Market Applications Where the Flexo Printing Machine Excels
Thanks to its broad substrate compatibility, the Flexo Printing Machine dominates several high-growth segments:
• Soft packaging: Stand-up pouches, retort bags, and vacuum packs are all produced on a Flexo Printing Machine with low solvent residue (<5 ppm) to meet FDA/EU food-contact rules.
• Paper & corrugated: Pre-print linerboard and post-print cases run on the same Flexo Printing Machine by swapping sleeve gears, slashing changeover time from 45 min to <5 min.
• Aseptic liquid packs: Tetra-style brick cartons require sterile barrier inks; our Flexo Printing Machine uses electron-beam curing to achieve sterilization in-line.
• Decorative materials: Wallcoverings and decorative foils printed on a Flexo Printing Machine can reach 1,200 dpi photographic resolution using HD plates and 1.14 mm sleeves.
Section 3: Advantages of Upgrading to a Servo Flexo Printing Machine
Converters who migrate from gear-driven legacy presses to a full-servo Flexo Printing Machine report immediate ROI through:
30 % reduction in start-up waste because each print station on the Flexo Printing Machine can pre-register electronically.
25 % faster job turnaround thanks to sleeve technology and auto-wash systems on the Flexo Printing Machine.
Energy savings up to 20 % via regenerative drives that feed braking energy back into the Flexo Printing Machine grid.
Predictive maintenance alerts generated by IoT sensors embedded throughout the Flexo Printing Machine, cutting unplanned downtime by 40 %.
Section 4: Sustainability Innovations in the Modern Flexo Printing Machine
Environmental compliance is no longer optional. The latest generation of Huayang Flexo Printing Machine integrates:
• Water-based ink circulation with viscosity control to keep VOC emissions under 50 ppm.
• Solvent recovery modules mounted directly on the Flexo Printing Machine frame, reclaiming up to 95 % of ethyl acetate for reuse.
• Power-regenerative dryers that cut CO₂ footprint by 18 % per million impressions on the Flexo Printing Machine.
These features allow brand owners to hit aggressive 2030 carbon-reduction targets without sacrificing color brilliance or line speed.
Section 5: Choosing Between an Entry-Level and High-End Flexo Printing Machine
Huayang offers two distinct tiers so converters can scale their investment:
• HY-EcoFlex Series: 8-color gearless Flexo Printing Machine at 150 m/min, ideal for emerging markets and short runs up to 5 km.

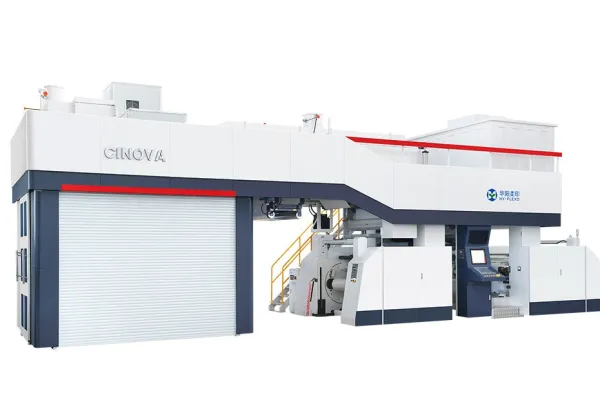

• HY-UltraFlex Series: 10-color, 200 m/min CI drum Flexo Printing Machine with auto-sleeve, auto-clean, and AI register control for premium flexible packaging.
Both share common spares and operator training, ensuring a seamless upgrade path when volume justifies stepping up to the top-tier Flexo Printing Machine.
Section 6: Total Cost of Ownership for a Flexo Printing Machine
When budgeting for a new Flexo Printing Machine, look beyond sticker price. A Huayang Flexo Printing Machine typically delivers:
• Sub-24-month payback on consumables savings alone, thanks to low-anilox volume technology that reduces ink laydown by 8 %.
• 98 % mechanical availability backed by a 24/7 remote service portal for every Flexo Printing Machine we ship.
• Modular construction allowing field retrofits—add cold-foil or screen units without replacing the entire Flexo Printing Machine frame.
