Reduce Waste and Increase Profitability with Smart Roll Coating.

Different roll coating methods are optimized for different coating thicknesses. For very thin, precise coatings (a few microns), direct or reverse gravure coating is often the best choice as it meters an exact volume of liquid. For medium-thickness coatings, a reverse roll coater offers excellent control and a flawless finish. For applying heavy or high-viscosity coatings, a comma coater is the ideal solution, as the gap between the comma blade and the roller can be precisely adjusted to allow a thick layer of material to pass through. The ability to control this gap is fundamental to achieving the target coat weight in many roll coating applications.

When investing in a roll coating machine, look for several key attributes. Robustness and Stability are paramount; the machine frame must be heavy and vibration-free to ensure precision at high speeds. The Precision of the Rollers is critical; they must be perfectly ground and balanced. A Sophisticated Web Handling System with precise tension control is essential to manage the substrate without defects. Finally, an Efficient and Well-Designed Drying/Curing System is just as important as the coater itself, as it must cure the coating evenly without damaging the substrate. A high-quality machine from a reputable manufacturer will integrate all these elements into a reliable, high-performance system.

Roll coating is a foundational process in a huge number of industries. The packaging industry uses it to apply adhesives for laminates and functional coatings for barrier properties. The construction and furniture industries use it to apply decorative finishes and protective lacquers to vinyl flooring, wallcoverings, and laminate papers. The automotive industry relies on it for creating interior laminates and applying adhesives. The electronics industry uses it for certain components, and it's essential for manufacturing adhesive tapes, labels, protective films, and a vast array of other coated industrial products.

The primary advantage of roll coating is its incredible efficiency for mass production. It is a continuous, high-speed process that can run at hundreds of meters per minute, resulting in a very low cost per square meter. Secondly, it offers superior consistency. A well-engineered roll coater can maintain a precise coating thickness with minimal variation across the entire roll, which is critical for product performance. Thirdly, it is highly versatile. Different roll coating configurations can handle a vast range of coating viscosities, from water-thin lacquers to thick plastisols, and can be applied to a wide variety of substrates including paper, film, foil, and non-wovens.

There are several distinct methods of roll coating, each suited for different applications and fluid properties. Reverse Roll Coating is a highly precise method that uses three rollers, with the applicator roll moving in the opposite direction of the web, resulting in an exceptionally smooth and uniform finish, ideal for optical films and high-end finishes. Gravure Coating uses an engraved roller to deliver a very precise and repeatable volume of coating, perfect for very thin layers. Comma Coating uses a precision roller and a "comma" shaped doctor blade, excellent for applying high-viscosity or heavy-weight coatings like those used in flooring. Other methods include Mayer Rod, Kiss Coating, and Dip Coating, each with unique advantages.

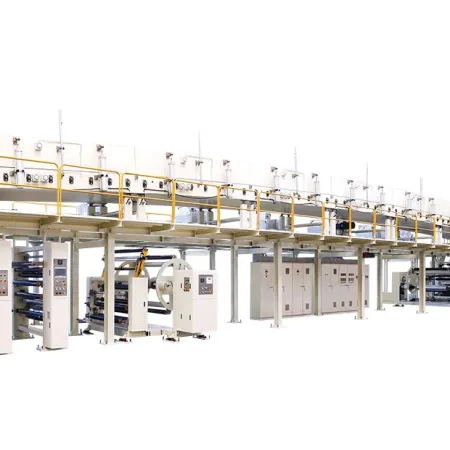

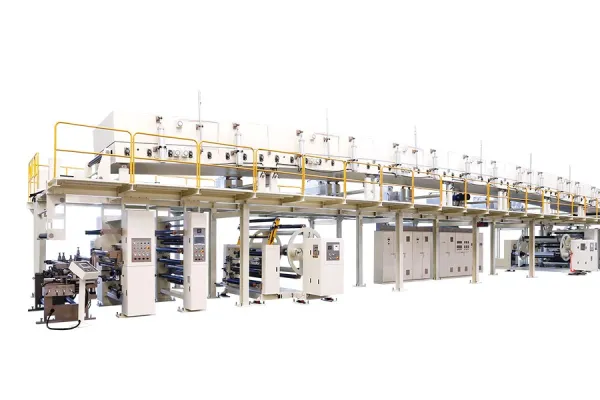

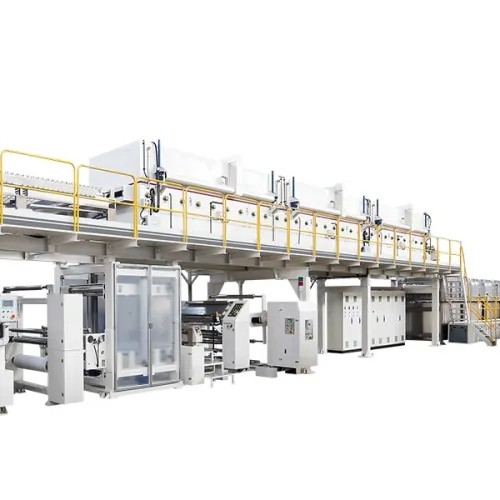

Industrial roll coating is a manufacturing process that uses a series of rollers to apply a precise layer of liquid coating (such as adhesives, paints, lacquers, or functional chemicals) onto a moving web of material. The substrate, or "web," is unwound from a large roll and guided through the coating station where one or more rollers transfer the coating. It then typically passes through a dryer or oven to cure the coating before being rewound into a finished roll. It is the go-to method for high-volume, continuous coating because of its exceptional speed, efficiency, and ability to produce a highly consistent finish over thousands of meters of material.
